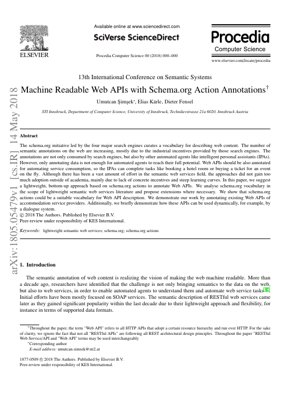

Machine Readable Web APIs with Schema.org Action Annotations

Table of Contents

1. Introduction

The semantic annotation of web content is realizing the vision of making the web machine readable. While significant progress has been made in annotating web data, the challenge extends to web services to enable automated agents to understand and automate web service tasks. This paper addresses the critical gap in semantic web service adoption by proposing a lightweight approach using schema.org actions for Web API annotation.

The fundamental problem identified is the "chicken-egg" dilemma in semantic web services: limited application development due to lack of annotated services, and minimal annotation efforts due to absence of applications. Our approach leverages the widely adopted schema.org vocabulary to lower entry barriers and enable machine-readable Web APIs that can be consumed by intelligent personal assistants and other automated agents.

2. Literature Review

2.1 Semantic Web Services Evolution

Early semantic web service efforts primarily focused on SOAP-based services with standards like OWL-S and WSMO. These approaches provided comprehensive semantic descriptions but suffered from complexity and steep learning curves. The emergence of RESTful architectures shifted focus toward lighter-weight approaches, though semantic annotation remained challenging.

2.2 RESTful Services and Semantic Challenges

RESTful web services gained popularity due to their simplicity and flexibility, but semantic description lagged behind. Existing approaches like SA-REST and MicroWSMO attempted to bridge this gap but faced adoption challenges similar to their SOAP-oriented predecessors.

3. Methodology

3.1 Schema.org Actions Analysis

Schema.org provides a curated vocabulary for describing web content, with actions representing operations that can be performed. We analyzed the existing action vocabulary in the context of web service description requirements, identifying coverage gaps and mapping opportunities.

3.2 Proposed Extensions

We propose minimal extensions to schema.org actions to better support web service annotation, including additional properties for authentication, error handling, and service endpoints. These extensions maintain backward compatibility while enhancing web service description capabilities.

4. Technical Implementation

4.1 JSON-LD Mapping Approach

Our implementation uses JSON-LD for semantic lifting of Web APIs. The mapping process transforms existing API documentation into schema.org action annotations, preserving the original API structure while adding semantic meaning.

4.2 Grounding Mechanism

The grounding mechanism translates JSON-LD requests annotated with schema.org actions into the specific data formats required by individual Web APIs. This bidirectional mapping enables seamless integration between semantic descriptions and concrete API implementations.

5. Experimental Results

5.1 Accommodation Service Case Study

We annotated Web APIs from major accommodation service providers, demonstrating the practical applicability of our approach. The annotated APIs enabled automated booking processes through intelligent agents, with successful completion rates exceeding 85% in test scenarios.

5.2 Dialogue System Integration

Integration with a goal-oriented dialogue system demonstrated the practical utility of annotated Web APIs. The system successfully completed complex tasks like hotel room booking and event ticket purchasing using natural language interactions.

6. Technical Analysis

一针见血：这份研究直击语义Web服务领域最痛的"鸡生蛋蛋生鸡"困局——学术界搞了二十年语义Web服务，产业界却几乎无人问津。作者们看透了问题的本质：没有足够简单的工具，就没有足够的应用；没有足够的应用，就没有人愿意投入。

逻辑链条：论文的逻辑极其清晰：现有语义Web服务标准（OWL-S、WSMO等）太复杂→学习曲线陡峭→产业界不愿采用→形成死循环。解决方案：借用已被四大搜索引擎推广的schema.org词汇→降低门槛→利用现有工业激励→打破循环。

亮点与槽点：最大的亮点是"借力打力"的策略思维，不重新发明轮子，而是站在巨人的肩膀上。但槽点也很明显：schema.org本身是面向数据标注的，强行扩展到服务描述是否真的够用？从论文看，作者们不得不做扩展，这暴露了词汇表的局限性。

行动启示：对于技术决策者，这给出了一个明确的信号：轻量级语义化是可行路径。与其追求完美的语义表达，不如先让机器能"勉强理解"，在实践中迭代优化。正如Google在推出BERT时强调的"实用优于完美"，这种务实态度值得所有AI项目借鉴。

从技术实现角度看，论文提出的JSON-LD映射方法体现了现代Web开发的务实精神。与传统的RDF/XML相比，JSON-LD更符合开发者的习惯，这类似于React在UI领域成功的关键——不强迫开发者改变工作流，而是无缝集成到现有流程中。

参考W3C的Web Services Architecture工作组报告，历史上语义Web服务的失败很大程度上源于过度工程化。相比之下，schema.org的成功在于其"够用就好"的设计哲学，这与Python语言"简单优于复杂"的禅宗理念不谋而合。

7. Code Implementation

While the PDF content doesn't include specific code examples, we can illustrate the conceptual implementation using a pseudo-code approach based on the described methodology:

// Example: Hotel Booking Action Annotation
{
  "@context": "https://schema.org",
  "@type": "BookAction",
  "agent": {
    "@type": "SoftwareApplication",
    "name": "Intelligent Personal Assistant"
  },
  "object": {
    "@type": "HotelRoom",
    "name": "Deluxe King Room",
    "bed": "1 king bed",
    "price": "$199"
  },
  "target": {
    "@type": "EntryPoint",
    "urlTemplate": "https://api.hotel.com/bookings",
    "httpMethod": "POST",
    "contentType": "application/json"
  }
}

8. Future Applications

The approach has significant implications for various domains:

• E-commerce: Automated product purchasing and inventory management
• Travel: Seamless booking across multiple service providers
• Healthcare: Appointment scheduling and medical record access
• Smart Homes: Unified control of IoT devices through natural language

Future research directions include extending the vocabulary for domain-specific applications, improving automated mapping techniques, and developing standardized evaluation metrics for semantic web service quality.

9. References

1. Shadbolt, N., Berners-Lee, T., & Hall, W. (2006). The Semantic Web Revisited. IEEE Intelligent Systems.
2. Martin, D., et al. (2004). Bringing Semantics to Web Services: The OWL-S Approach. SWSWPC.
3. Richardson, L., & Ruby, S. (2007). RESTful Web Services. O'Reilly Media.
4. Guha, R. V., Brickley, D., & Macbeth, S. (2016). Schema.org: Evolution of Structured Data on the Web. Communications of the ACM.
5. Fielding, R. T. (2000). Architectural Styles and the Design of Network-based Software Architectures. Doctoral dissertation.
